The HD-1 high-silicon stainless steel is a novel corrosion-resistant material jointly developed by New Hongda and the Institute of Metal Research, Chinese Academy of Sciences. It demonstrates excellent long-term performance in high-temperature concentrated sulfuric acid applications.
DescriPtion:
Annual Corrosion Rate of HD-1 High Silicon Stainless Steel | |||
Test Temperature (°C) | Test Duration (h) | Corrosion Rate (mm·a⁻¹) | |
93% H₂SO₄ | 98% H₂SO₄ | ||
60 | 168 | 0.00187 | 0.00037 |
80 | 240 | 0.0051 | 0.00085 |
100 | 216 | 0.0088 | 0.0052 |
120 | 96 | 0.0109 | 0.0081 |
150 | 144 | 0.0301 | 0.0091 |
200 | 144 | 0.6441 | 0.076 |
Ứng dụng:

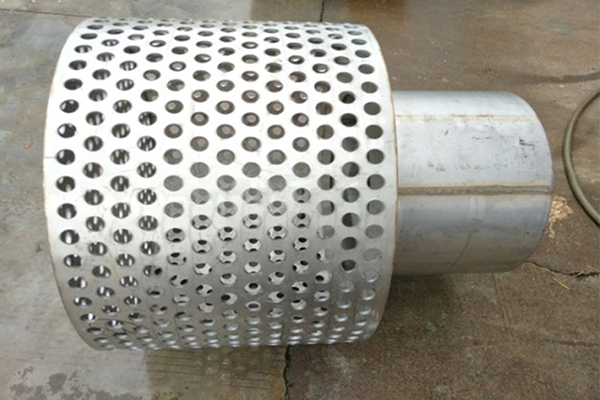

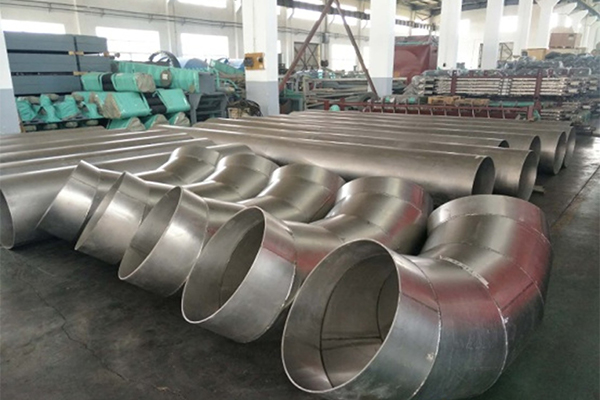

In addition to manufacturing tube-trough acid distributors, HD-1 high-silicon stainless steel is widely used in the drying and absorption sections of sulfuric acid plants for producing: drying towers, absorption towers, filters, packing support grid plates, circulation tanks, welded pipes, sleeve pipes etc.
Thông số kỹ thuật:
The following product specifications are provided for your reference:

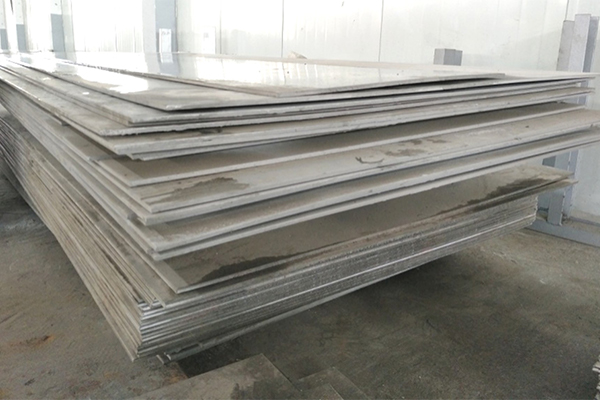

HD-1 High-Silicon Stainless Steel Plates
Main Specifications: 4×1000×2500, 6×1000×2500, 8×1000×2500 …
HD-1 High-Silicon Stainless Steel Seamless Tubes
Main Specifications: Φ19×1.25, Φ21×1.25, Φ25×1.5 …
Lợi thế cạnh tranh:
General Product Information
Nơi xuất xứ: | Jiangsu |
Tên thương hiệu: | Hongda mới |
Chứng nhận: | SGS, ISO |
Số mô hình: |
Product Commercial Terms
Số lượng đặt hàng tối thiểu: | 1 bộ |
Giá: | Có thể thương lượng |
Chi tiết đóng gói: | Vỏ sắt đáng kinh ngạc |
Thời gian giao hàng: | Có thể thương lượng |
Điều khoản thanh toán: | T {{url_placeholder_0}} l {{url_placeholder_1}} |
Khả năng cung cấp: |
